Wireless

1. Access the GUI of WLC1 (https://10.0.0.7) from one of the PCs.
   a. Username: admin
   b. Password: adminPW12

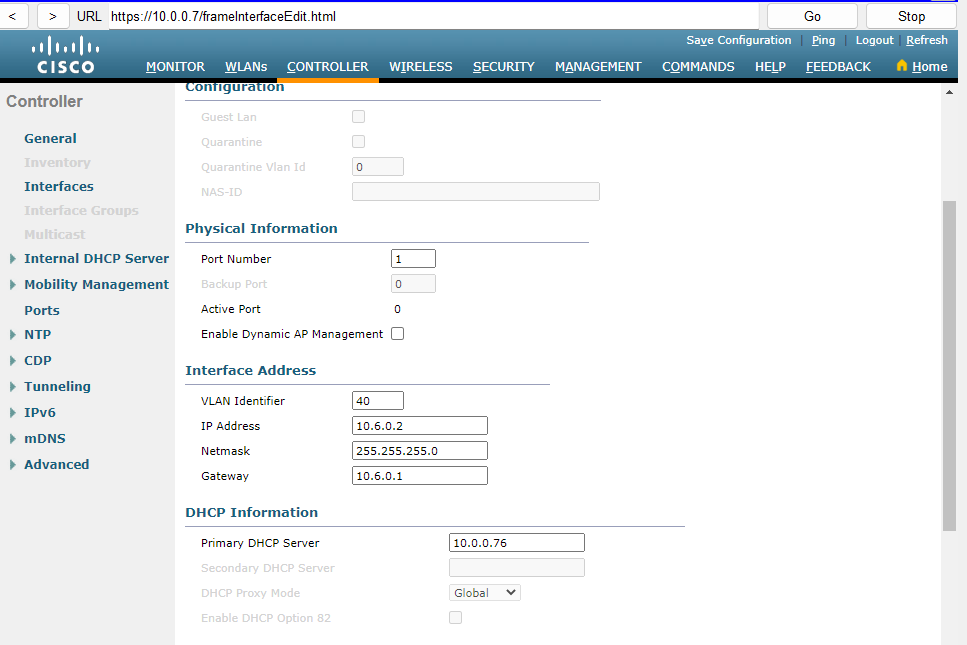

2. Configure a dynamic interface for the Wi-Fi WLAN (10.6.0.0/24)
   a. Name: Wi-Fi
   b. VLAN: 40
   c. Port number: 1
   d. IP address: .2 of its subnet
   e. Gateway: .1 of its subnet
   f. DHCP server: 10.0.0.76

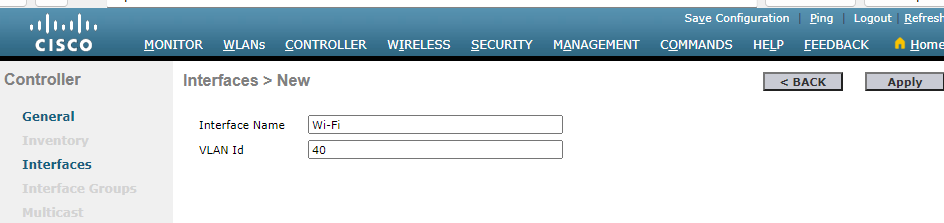

Create Wireless Interface:

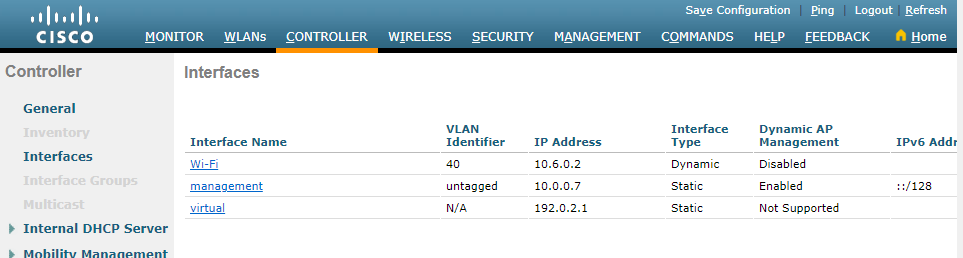

Confirm that the interface was created (the other two are default):

1. Configure and enable the following WLAN:
   a. Profile name: Wi-Fi
   b. SSID: Wi-Fi
   c. ID: 1
   d. Status: Enabled
   e. Security: WPA2 Policy with AES encryption, PSK of cisco123

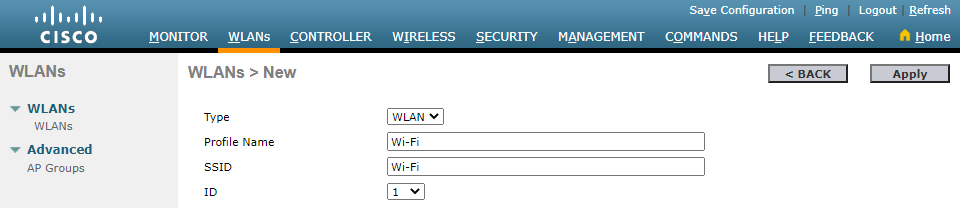

Create the SSID:

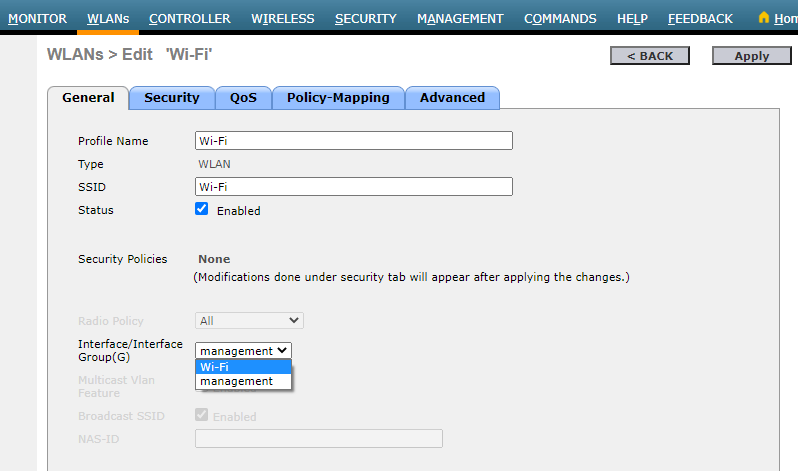

Choose Wi-Fi Interface and enable:

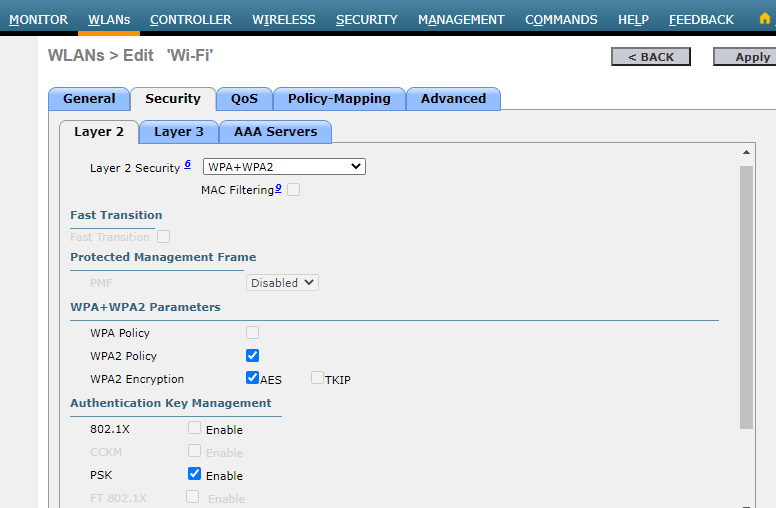

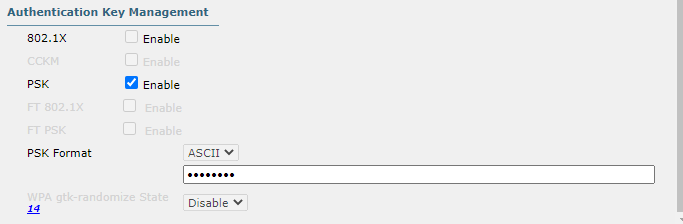

Configure WPA2 security and a PSK, then apply:

1. Verify that both LWAPs have associated with WLC1.
   a. Due to Packet Tracer’s limitations, wireless clients won’t be able to lease an IP address from the Wi-Fi DHCP pool.

You can get to view the APs from the Monitor page:
